Standard shape

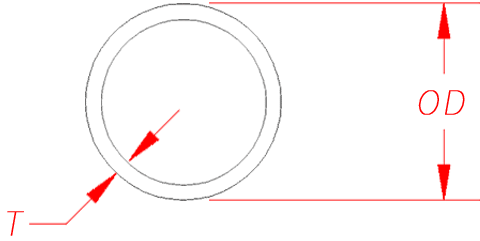

Aluminum Round Tube
34 standard round tube configurations in common alloys and tempers. Sort or search the table to find your size, then contact us to order or request a custom die.
34 dies
All dimensions in inches · weight in lb/ft · Swipe for more columns →
| DIE# ↕ | OD ↕ | T ↕ | Wt/Ft ↕ |
|---|---|---|---|
| AA-6 | 0.375 | 0.085 | 0.094 |
| AA-7 | 0.375 | 0.102 | 0.106 |
| 3093 | 0.375 | 0.113 | 0.112 |
| DHO-2 | 0.5 | 0.095 | 0.148 |
| KS-1 | 0.5 | 0.133 | 0.184 |
| AA-5 | 0.5 | 0.146 | 0.197 |
| KIC-2 | 0.54 | 0.088 | 0.147 |
| LMR-1 | 0.625 | 0.054 | 0.121 |
| AES-43 | 0.625 | 0.065 | 0.136 |
| AA-11 | 0.75 | 0.242 | 0.463 |
| AES-181 | 0.75 | 0.05 | 0.13 |
| QMC-12 | 0.875 | 0.05 | 0.151 |
| AA-9 | 0.875 | 0.306 | 0.657 |
| AES-139 | 1 | 0.125 | 0.412 |
| 1129 | 1 | 0.05 | 0.179 |
| 3575 | 1 | 0.062 | 0.221 |
| BST-1 | 1 | 0.083 | 0.288 |
| 2609 | 1.05 | 0.113 | 0.398 |
| AES-180 | 1.125 | 0.058 | 0.233 |
| AES-17 | 1.25 | 0.25 | 0.942 |
| CAM-1 | 1.38 | 0.19 | 0.835 |
| AES-134 | 1.5 | 0.065 | 0.338 |
| 2898 | 1.66 | 0.14 | 0.786 |
| 2170 | 1.75 | 0.125 | 0.766 |
| 2899 | 1.9 | 0.145 | 0.94 |
| 2750 | 2 | 0.065 | 0.478 |
| AES-143 | 2 | 0.125 | 0.884 |
| AES-19 | 2 | 0.312 | 1.99 |
| HAI-1 | 2.125 | 0.142 | 1.066 |
| AHS-1 | 2.312 | 0.156 | 1.27 |
| GOL-9 | 2.375 | 0.065 | 0.565 |
| PEI-1 | 2.375 | 0.188 | 1.542 |
| KIC-5 | 2.5 | 0.25 | 2.122 |
| MIN-1 | 3.75 | 0.072 | 0.998 |
