Standard shape
Aluminum Tee
8 standard tee configurations in common alloys and tempers. Sort or search the table to find your size, then contact us to order or request a custom die.
8 dies

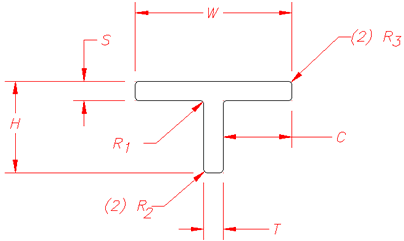

All dimensions in inches · weight in lb/ft · Swipe for more columns →
| DIE# ↕ | H ↕ | W ↕ | S ↕ | T ↕ | C ↕ | R1 ↕ | R2 ↕ | R3 ↕ | Wt/Ft ↕ |
|---|---|---|---|---|---|---|---|---|---|
| WHA-2 | 0.437 | 0.625 | 0.062 | 0.125 | 0.25 | 0.01 | 0.01 | 0.01 | 0.103 |
| 3386 | 0.75 | 1 | 0.25 | 0.25 | 0.375 | 0.01 | FULL | FULL | 0.349 |
| 3387 | 0.75 | 2 | 0.25 | 0.25 | 0.875 | 0.01 | FULL | FULL | 0.643 |
| AES-33 | 0.875 | 1.5 | 0.188 | 0.188 | 0.656 | 0.01 | 0.01 | 0.01 | 0.493 |
| 2746 | 0.938 | 0.75 | 0.062 | 0.344 | 0.01 | 0.01 | 0.01 | 0.01 | 0.123 |
| HF-123 | 1 | 1 | 0.095 | 0.063 | 0.469 | 0.015 | 0.015 | 0.015 | 0.199 |
| 3333 | 2.09 | 1.59 | 0.09 | 0.09 | 0.75 | 0.01 | 0.01 | 0.01 | 0.37 |
| RBI-47 | 4 | 2.75 | 0.25 | 0.188 | 1.281 | 0.01 | 0.01 | 0.01 | 1.614 |
