Standard shape
Aluminum Square/Rectangular Tube
39 standard square/rectangular tube configurations in common alloys and tempers. Sort or search the table to find your size, then contact us to order or request a custom die.
39 dies
All dimensions in inches · weight in lb/ft · Swipe for more columns →

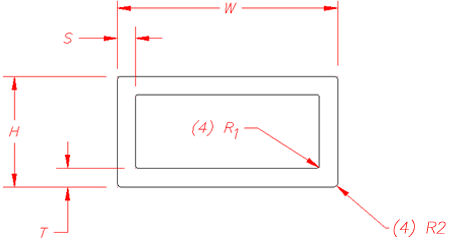

| DIE# ↕ | H ↕ | W ↕ | T ↕ | S ↕ | R1 ↕ | R2 ↕ | Wt/Ft ↕ |
|---|---|---|---|---|---|---|---|
| 2842 | 0.25 | 0.75 | 0.062 | 0.187 | 0.062 | 0.062 | 0.169 |
| 1725 | 0.5 | 0.5 | 0.062 | 0.062 | 0.01 | 0.01 | 0.131 |
| 3397 | 0.5 | 0.5 | 0.062 | 0.062 | 0.01 | 0.031 | 0.128 |
| 3407 | 0.5 | 0.75 | 0.108 | 0.045 | 0.03 | 0.03 | 0.235 |
| 3308 | 0.5 | 0.75 | 0.065 | 0.065 | 0.01 | 0.031 | 0.178 |
| MAM-1 | 0.75 | 1.5 | 0.062 | 0.062 | 0.01 | 0.01 | 0.319 |
| MTS-1 | 0.75 | 4 | 0.125 | 0.125 | 0.015 | 0.015 | 1.35 |
| CQP-11 | 0.75 | 1 | 0.075 | 0.075 | 0.015 | 0.015 | 0.288 |
| CQP-5 | 0.75 | 1.5 | 0.11 | 0.11 | 0.03 | 0.015 | 0.537 |
| NBC-34 | 0.75 | 1.5 | 0.12 | 0.12 | 0.015 | 0.015 | 0.578 |
| 2294 | 0.875 | 0.875 | 0.125 | 0.125 | 0.01 | 0.01 | 0.45 |
| AES-39 | 1 | 1 | 0.05 | 0.05 | 0.01 | 0.01 | 0.228 |
| AES-142 | 1 | 1 | 0.125 | 0.125 | 0.015 | 0.015 | 0.526 |
| AES-112 | 1 | 1 | 0.063 | 0.063 | 0.01 | 0.062 | 0.28 |
| 1357 | 1 | 1 | 0.062 | 0.062 | 0.01 | 0.01 | 0.279 |
| AES-127 | 1 | 1.5 | 0.125 | 0.125 | 0.125 | 0.125 | 0.644 |
| 2137 | 1 | 2 | 0.08 | 0.08 | 0.01 | 0.01 | 0.545 |
| AES-23 | 1 | 2 | 0.125 | 0.125 | 0.01 | 0.01 | 0.826 |
| AES-140 | 1 | 3 | 0.125 | 0.125 | 0.015 | 0.015 | 1.125 |
| ADV-1 | 1.25 | 1.25 | 0.065 | 0.065 | 0.01 | 0.01 | 0.351 |
| AES-144 | 1.25 | 1.25 | 0.065 | 0.065 | 0.123 | 0.188 | 0.348 |
| AOK-2 | 1.25 | 1.25 | 0.09 | 0.09 | 0.02 | 0.01 | 0.519 |
| AES-44 | 1.5 | 1.5 | 0.05 | 0.05 | 0.01 | 0.01 | 0.348 |
| AES-125 | 1.5 | 1.5 | 0.093 | 0.093 | 0.015 | 0.015 | 0.516 |
| 1607 | 1.5 | 1.5 | 0.062 | 0.062 | 0.01 | 0.01 | 0.428 |
| 2125 | 1.5 | 1.5 | 0.125 | 0.125 | 0.125 | 0.125 | 0.825 |
| RRP-1 | 1.5 | 2 | 0.062 | 0.062 | 0.01 | 0.01 | 0.503 |
| AES-13 | 1.5 | 2 | 0.125 | 0.125 | 0.01 | 0.01 | 0.975 |
| FLP-1 | 1.5 | 3 | 0.125 | 0.125 | 0.01 | 0.01 | 1.274 |
| CQP-10 | 1.5 | 2 | 0.075 | 0.075 | 0.015 | 0.015 | 0.604 |
| CQP-7 | 1.5 | 4 | 0.12 | 0.12 | 0.015 | 0.015 | 1.57 |
| CQP-6 | 1.5 | 2 | 0.11 | 0.11 | 0.03 | 0.015 | 0.865 |
| ITT-1 | 1.505 | 1.505 | 0.095 | 0.095 | 0.125 | 0.22 | 0.642 |
| 3590 | 1.75 | 4 | 0.102 | 0.102 | 0.01 | 0.01 | 1.384 |
| 3183 | 1.875 | 1.875 | 0.062 | 0.062 | 0.01 | 0.01 | 0.526 |
| 2929 | 2 | 2 | 0.125 | 0.125 | 0.01 | 0.01 | 1.125 |
| RR-2 | 2 | 2 | 0.125 | 0.125 | 0.125 | 0.25 | 1.076 |
| SHI-14 | 2 | 2 | 0.062 | 0.062 | 0.015 | 0.015 | 0.577 |
| AES-138 | 2.75 | 2.75 | 0.06 | 0.06 | 0.015 | 0.015 | 0.775 |
