Aluminum Flat Bar

47 standard flat bar configurations in common alloys and tempers. Sort or search the table to find your size, then contact us to order or request a custom die.

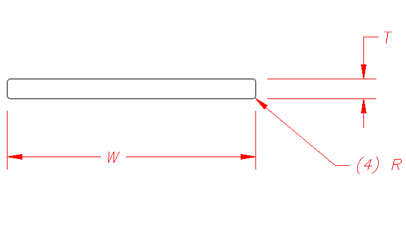

Flat Bar cross-section diagram
47 dies

All dimensions in inches · weight in lb/ft · Swipe for more columns →

DIE# ↕ T ↕W ↕R ↕ Wt/Ft ↕
3288 0.0831.250.01 0.122
3600 0.11.4840.01 0.178
516-X 0.1250.50.01 0.075
AES-141 0.1250.750.015 0.113
526-X 0.12510.01 0.15
3396 0.1251.3750.01 0.209
541-X 0.1251.50.01 0.226
542-X 0.12520.01 0.3
AES-136 0.12530.015 0.45
RBI-32 0.1253.50.01 0.526
AES-163 0.1250.8750.015 0.131
2748 0.1251.250.01 0.187
3449 0.1560.4370.015 0.082
AES-126 0.1870.5— 0.113
3272 0.1871.250.01 0.275
AES-27 0.1881.50.01 0.338
AES-28 0.18820.01 0.451
GBC-13 0.21.2260.015 0.295
AES-105 0.250.750.01 0.225
AES-120 0.250.8750.01 0.265
525-X 0.2510.01 0.3
AES-146 0.251.50.015 0.45
528-X 0.2520.01 0.6
AES-137 0.252.50.015 0.75
530-X 0.2530.01 0.9
AES-8 0.2540.01 1.2
AES-102 0.250.750.01 0.224
AES-123 0.31210.015 0.374
KDL-1 0.3121.240.06 0.464
AES-121 0.3121.250.01 0.47
543-X 0.3750.3750.01 0.169
3484 0.3750.50.01 0.225
AES-162 0.3750.750.015 0.337
899 0.37520.03 0.9
AES-38 0.37530.015 1.35
AES-151 0.50.750.015 0.45
AES-40 0.510.125 0.6
AES-1 0.51.50.01 0.9
NBC-25 0.51.750.01 1.05
3544 0.52.1250.01 1.295
529-X 0.51.250.01 0.75
AES-135 0.6251.50.015 1.125
AES-49 0.751.50.01 1.35
AES-104 0.752.7650.01 2.489
DHO-1 0.8120.750.01 0.731
AES-29 110.01 1.2
AES-31 120.01 2.4
