Aluminum H-Channel
12 standard H-channel configurations in common alloys and tempers. Sort or search the table to find your size, then contact us to order or request a custom die.
12 dies
All dimensions in inches · weight in lb/ft · Swipe for more columns →

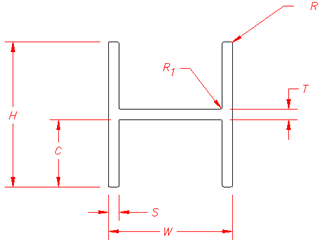

| DIE# ↕ | H ↕ | W ↕ | C ↕ | T ↕ | S ↕ | R1 ↕ | R ↕ | Wt/Ft ↕ |
|---|---|---|---|---|---|---|---|---|
| 3390 | 0.875 | 0.562 | 0.312 | 0.25 | 0.109 | 0.01 | 0.01 | 0.325 |
| 3266 | 0.875 | 0.75 | 0.375 | 0.125 | 0.063 | 0.093 | 0.01 | 0.23 |
| WHA-3 | 1.25 | 0.436 | 0.5 | 0.25 | 0.062 | 0.01 | 0.01 | 0.279 |
| 3291 | 1.25 | 0.486 | 0.531 | 0.187 | 0.093 | 0.01 | 0.01 | 0.34 |
| AAL-22 | 1.5 | 1.11 | 0.725 | 0.05 | 0.05 | 0.015 | 0.015 | 0.241 |
| AAL-2 | 1.5 | 1.215 | 0.75 | 0.045 | 0.045 | 0.01 | 0.01 | 0.222 |
| 2533 | 1.5 | 3 | 0.703 | 0.094 | 0.094 | 0.025 | 0.047 | 0.652 |
| AAL-12 | 1.5 | 3.36 | 0.725 | 0.05 | 0.05 | 0.01 | 0.01 | 0.374 |
| HF-96 | 1.938 | 0.937 | 0.938 | 0.062 | 0.062 | 0.015 | 0.015 | 0.349 |
| HF-119 | 2.44 | 0.875 | 0.815 | 0.06 | 0.06 | 0.03 | 0.015 | 0.407 |
| ENE-1 | 2.75 | 4 | 1.313 | 0.125 | 0.125 | 0.02 | 0.125 | 1.424 |
| RBI-41 | 3.5 | 5 | 1.75 | 0.188 | 0.25 | 0.01 | 0.01 | 3.115 |
