Standard shape
Aluminum Round-Edge Flat Bar
13 standard round-edge flat bar configurations in common alloys and tempers. Sort or search the table to find your size, then contact us to order or request a custom die.
13 dies
All dimensions in inches · weight in lb/ft · Swipe for more columns →

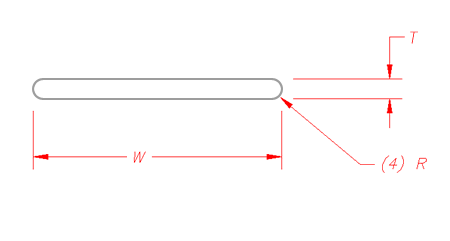

| DIE# ↕ | T ↕ | W ↕ | R ↕ | Wt/Ft ↕ |
|---|---|---|---|---|
| SHI-1 | 0.093 | 2 | 0.01 | 0.223 |
| 3228 | 0.094 | 0.75 | 0.047 | 0.081 |
| DMI-1 | 0.125 | 0.5 | 0.125 | 0.077 |
| 3235 | 0.125 | 1 | 0.062 | 0.143 |
| AES-115 | 0.125 | 2 | 0.125 | 0.295 |
| 2703 | 0.125 | 4 | 0.062 | 0.596 |
| LOB-1 | 0.125 | 0.5 | 0.063 | 0.071 |
| QMC-178 | 0.15 | 0.75 | 0.075 | 0.129 |
| RBI-42 | 0.188 | 0.75 | 0.094 | 0.161 |
| 1844 | 0.188 | 1.188 | 0.187 | 0.258 |
| 3250 | 0.25 | 1 | 0.125 | 0.28 |
| 3271 | 0.25 | 4 | 0.125 | 1.16 |
| AES-71 | 0.5 | 1 | 0.25 | 0.6 |
